Our Endless Injection-Molded Round Belts are ideal for low-power transmission applications. As they are made from elastic, they require no costly tensioning devices, have a minimum pulley diameter of 5.5 times the belt diameter, and due to the manufacturing process they have no welded joint or splice resulting in extremely smooth running.

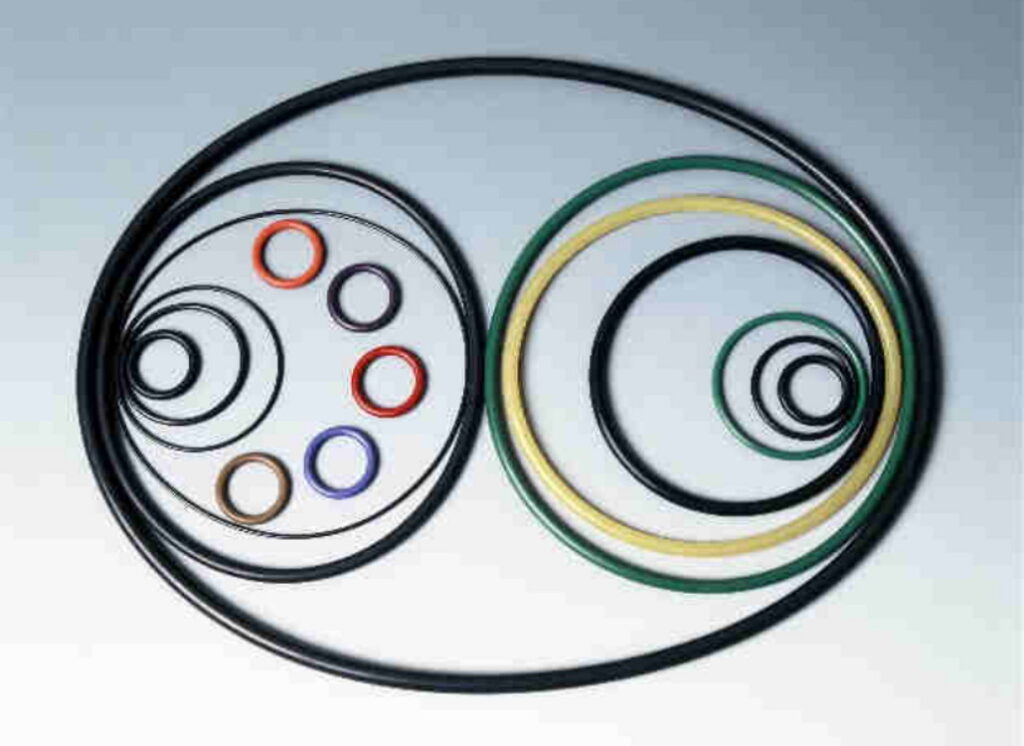

various_shapes_of_continuously_injected_round_belts

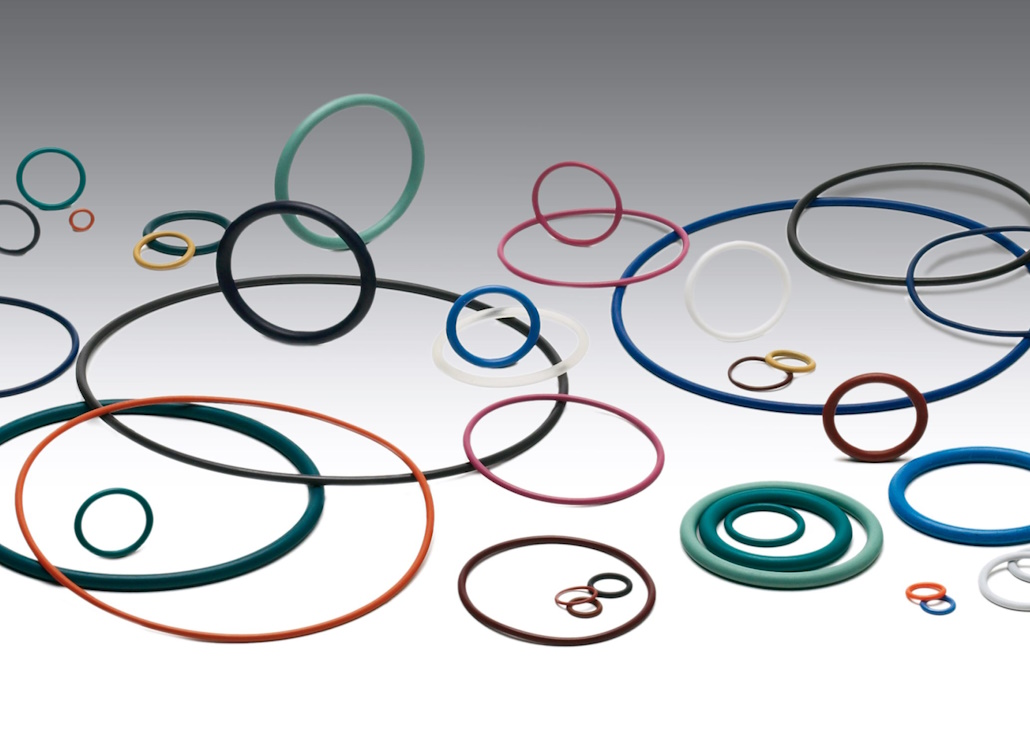

Overview of Endless Injection-Molded Round Belts

The recommended pre-tension is 6–12%. With more than 300 existing molds, most dimensions can be manufactured at short notice without additional tooling costs.

Various Applications for Pflug Round Belts

E80, V75, C70, and P82 types are manufactured from specially selected materials and designed to withstand high dynamic loads.

In addition, type E80 is conditionally antistatic, with a resistance value of approximately 10⁶ ohms, making it particularly suitable for electronic device and chip manufacturing.

These types have proven themselves over many years in sensitive applications and high-volume production.

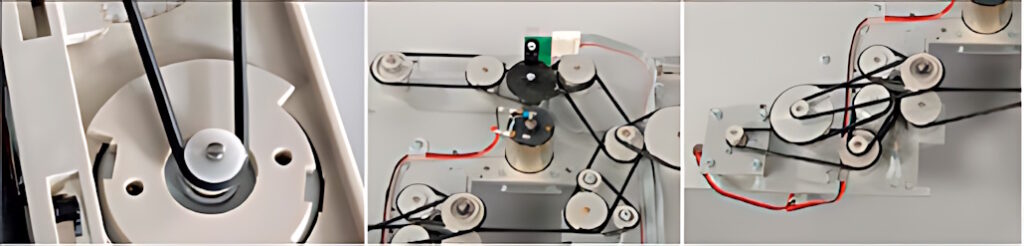

round_endless_belts
Endless Injection-Molded Round Belts use case

Like all elastic drive elements, these belts can be installed by simply stretching them over the pulleys, making them easy to install and significantly reducing downtime.

Available diameters: 1,8 – 7 mm
Available lengths: 40 mm – 2090 mm
Temperature resistance: -20°C – +160°C
Coefficients of friction: 0,35µ – 0,9µ *
Maximum tension: > 100 N
Specifications may vary depending on the belt type and material used.
* According to Pflug test specification SPPN 91.001, based on ground V2A stainless steel.
