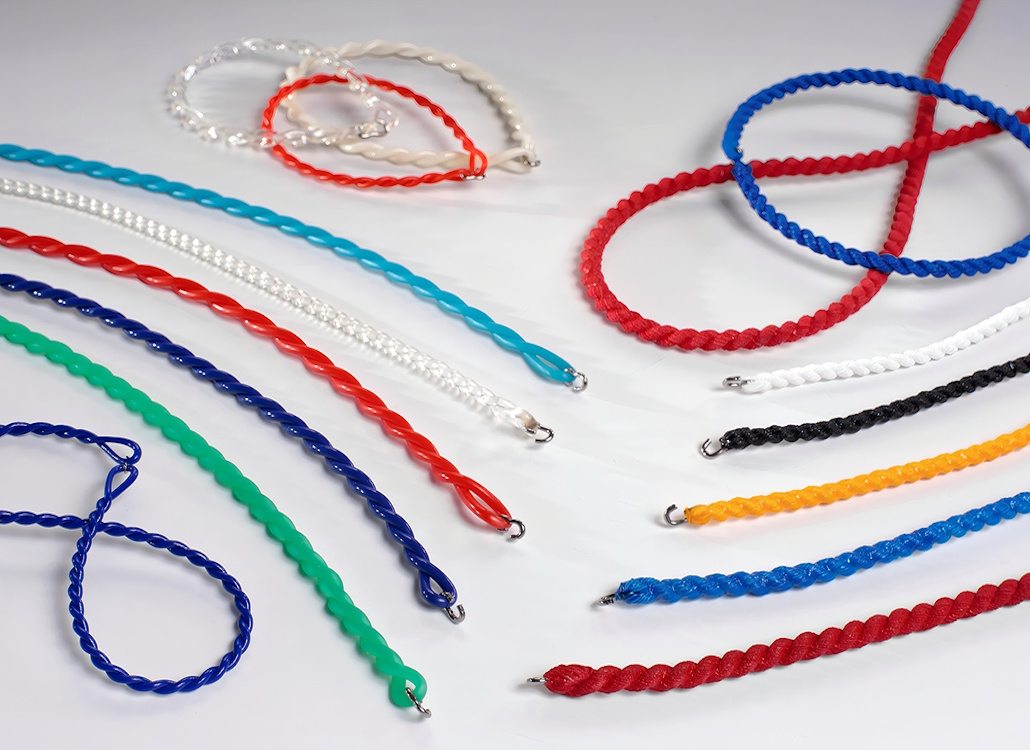

Hook Belts are the ideal solution for drive or conveyor systems with multiple belts on a single shaft.

Installation of a Hook Belt

Installation is carried out feeding the belt into the system. The belt is then connected to the hook, which is then closed using pliers, eliminating the need for time-consuming, costly disassembly.

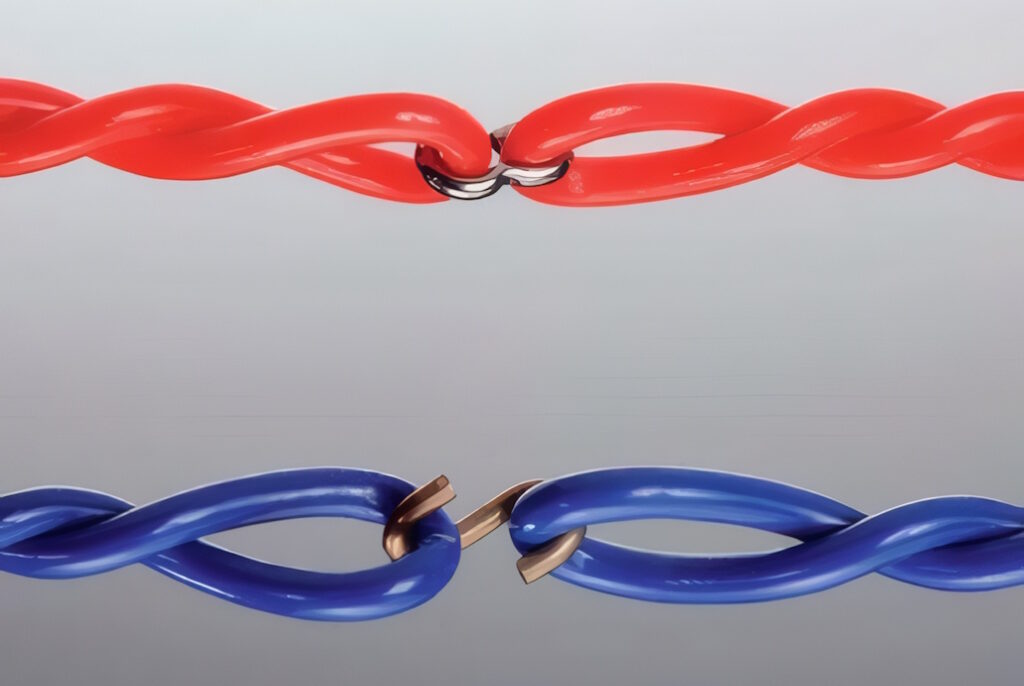

various_connecting-hooks
Due to a simple installation process, downtime and maintenance costs can be significantly reduced.

Applications

Minimum pulley diameter is approximately 3.5 times the belt diameter, making it possible to use small pulley diameters with PU belts in conveyor systems.

PU Hook Belts

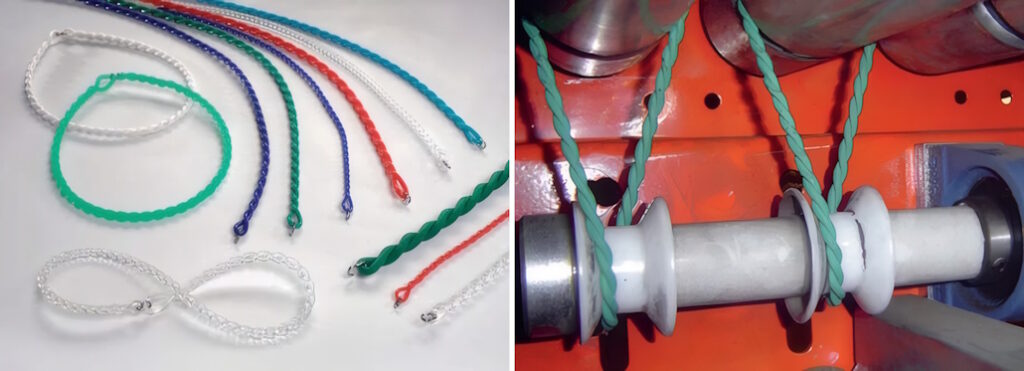

pu-hooked-belts_overview_and_application
PU Hook Belts Overview and Use Case
Dimensions: From 4 mm to 10 mm Ø, with unstretched lengths from 130 mm to 1700 mm LW.
Shore Hardness: Due to the wide range of raw materials available, we manufacture types ranging from 75° Shore A to 92° Shore A.
Surface: Smooth, with a roughened surface. Also available for some types.
FDA Compliance: When using 90° V2A stainless steel hooks, the transparent 80° Shore A and blue 85° Shore A types are FDA compliant.
Recommended Pretension: 6 – 12 %

Textile Hook Belts

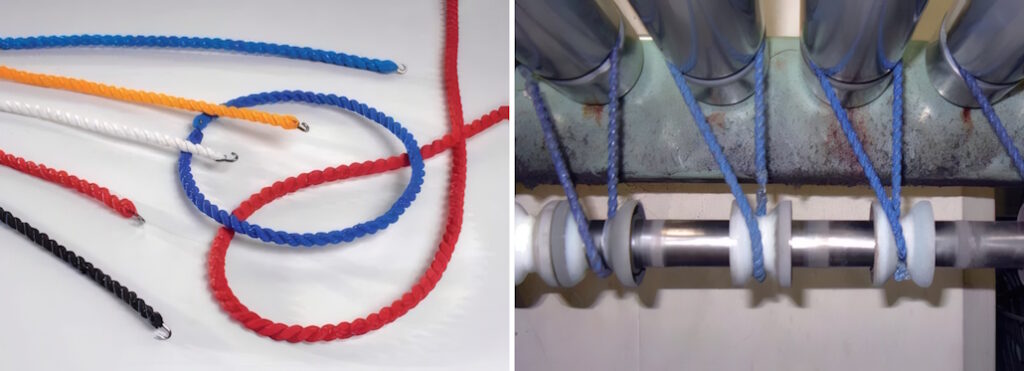

textile_hooked-belts-overview_of_applications
Overview of Textile Hook Belts and Use Case
Dimensions: From 3 mm to 10 mm Ø and unstretched lengths from 100 mm to 2000 mm LW.
Surface: Due to the textile surface, we can apply a wide variety of coatings and optimize the belts for specific operating conditions.
Recommended Pretension: 15 – 20 %

Hook Connections

All belts are available with two choices of metal hooks.

C-Hooks

C-hooks provide the best and most cost-effective solution for normal applications.

90° V2A Stainless Steel Hooks

90° V2A stainless steel hooks are recommended for direct food contact and demanding applications.

Note: The 90° hooks improve running smoothness by up to 15%.

Download our PDF brochure or explore our products directly:

pdf-download_new_2
Hook Belts (PDF-Download)
